4-Sided Applicator Lengthen

Category:
[ssba]
INQUIRY
Content:

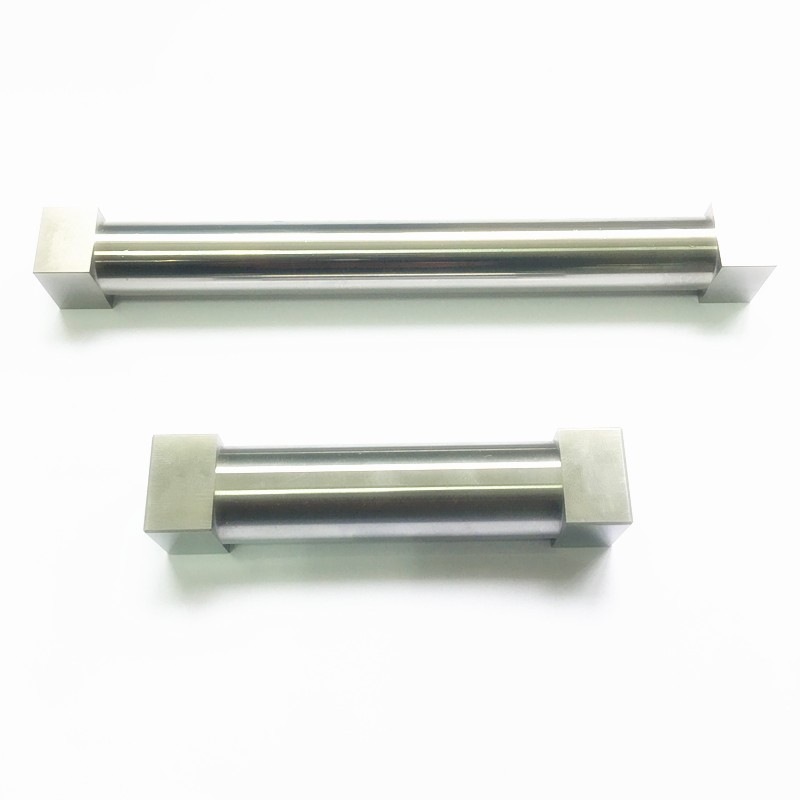

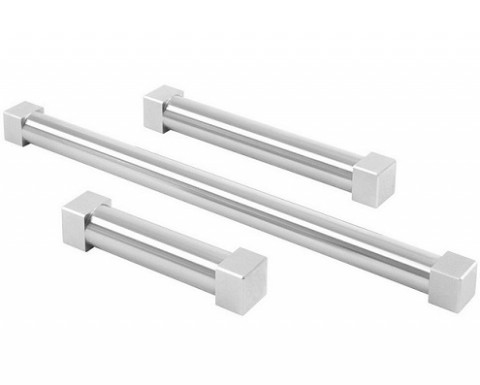

4-Sided Applicator L

Multiple Clearance Applicators are designed for the production of uniform films of paints,adhesions and similar products on plane substrates.

They combine the accuracy of fixed applicators with the versatility of multiple gap choices in one unit.

These applicators are suitable for use of aqueous,acid,and alkaline products.

● Stainless steel,corrosion resistant

● 4 clearances

Procedure

– Place substrate to be coated on smooth paper

– Place film applicator with desired gap depth on substrate

– Pour coating in front of gap in pulling direction

– Pull at uniform speed(approx. 25 mm/s)

– Put applicator immediately into diluted cleaning solvent and lean with brush

Standards

ASTM D 823 Standard Practices for Producing Films of Uniform Thickness of Paint, Varnish,etc.

Orering & Technical Specifications

Cat.No. Description Gap Clearance Fim Width
25111 4-Sided 5 & 10 & 15 & 20 μm 150 mm
25112 4-Sided 10 & 15 & 20 & 25 μm 150 mm
25113 4-Sided 25 & 50 & 75 & 100 μm 150 mm
25114 4-Sided 30 & 60 & 90 & 120 μm 150 mm
25115 4-Sided 50 & 75 & 100 & 150 μm 150 mm
25116 4-Sided 50 & 100 & 150 & 200 μm 150 mm
25117 4-Sided 100 & 150 & 200 & 250 μm 150 mm
25118 4-Sided 100 & 200 & 300 & 400 μm 150 mm
25119 4-Sided 250 & 500 & 750 & 1000 μm 150 mm



Cat.No. Description Gap Clearance Fim Width
25121 4-Sided 5 & 10 & 15 & 20 μm 200 mm
25122 4-Sided 10 & 15 & 20 & 25 μm 200 mm
25123 4-Sided 25 & 50 & 75 & 100 μm 200 mm
25124 4-Sided 30 & 60 & 90 & 120 μm 200 mm
25125 4-Sided 50 & 75 & 100 & 150 μm 200 mm
25126 4-Sided 50 & 100 & 150 & 200 μm 200 mm
25127 4-Sided 100 & 150 & 200 & 250 μm 200 mm
25128 4-Sided 100 & 200 & 300 & 400 μm 200 mm
25129 4-Sided 250 & 500 & 750 & 1000 μm 200 mm

Comes complete with

Applicator

Reuseable storage case
