Introduction:

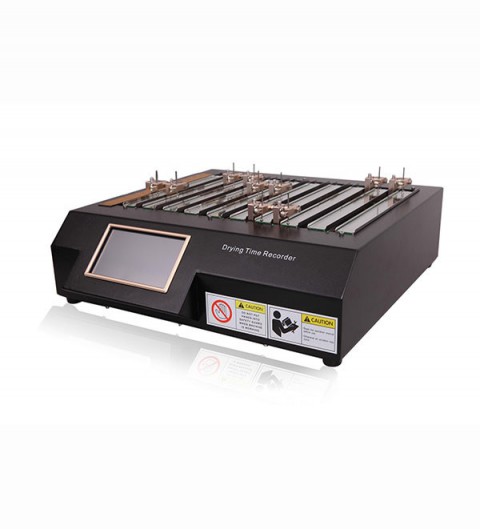

BEVS Drying Time Recorder is used for the test of drying time or gel behavior of a variety of paints and coatings. It has the characteristics of intuition and good reproducibility, and can accurately evaluate drying time in all stages.
Initiative design of touch screen control,customized user-defined start time and test time ,make the operation more intuitive and simple.
Technical Specification:
◆Dimension: 550×530×200 mm
◆The number of tracks：10
◆Length of strips: 300 mm
◆Driver：5 sets of motors, 2 track / motor
◆Drying Time:
-Standard track: 6,12,24,48 hours;
-Customized track (track 1):
Except the standard time, the user can customize the start and test time.
◆Function reset during the testing:
During the test, user can change the test time and re-start again.
Test Timing Table：
| Testing Time(hour) | ||||||
| Track No. | 6 | 12 | 24 | User Defined | Function Reset | |
| 1 | √ | √ | √ | √ | √ | √ |
| 2 | √ | √ | √ | √ | √ | |
| 3 | √ | √ | √ | √ | √ | |
| 4 | √ | √ | √ | √ | √ | |
| 5 | √ | √ | √ | √ | √ | |
| Remark: “√”:The test canbeperformed. | ||||||
| “User Defined”:User can set the test time between 1 to 48 hours upon request,so that can conduct the personlizedtest. |
||||||
| “Function reset”:During the test, user can change the test time and restart again. | ||||||
Standard:
ASTM D5895
Order Information:
BEVS1815 Drying Time Recorder
