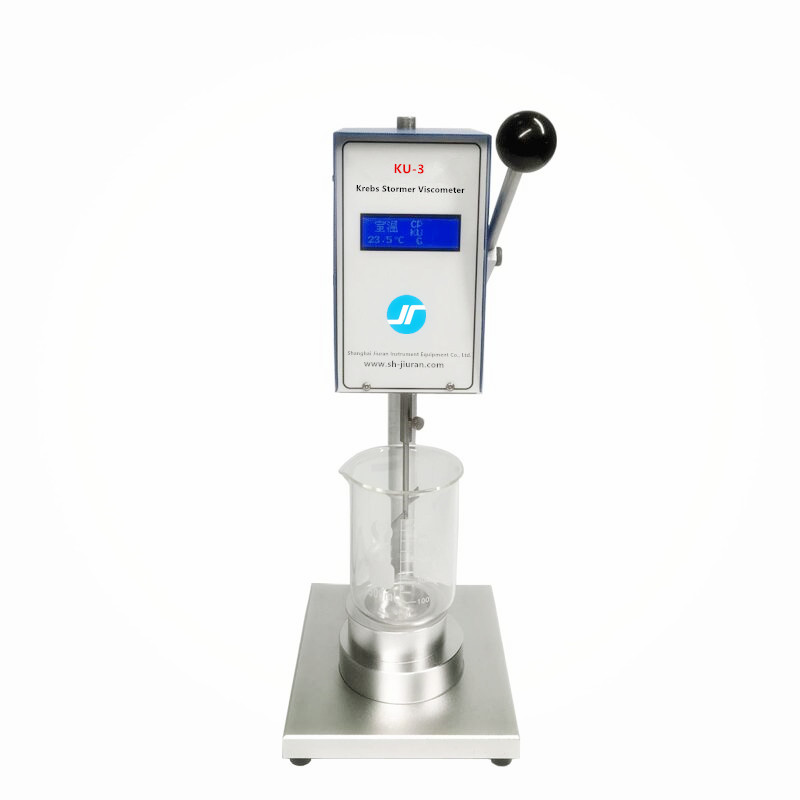

KU-3 Intelligent Krebs Stormer Viscometer

Category:
[ssba]
INQUIRY

The Digital Krebs Viscometer is used for measuring the viscosity of Newtonian and non-Newtonian fluids.

The viscosity of a non-Newtonian material varies depending on the rate of shear, but the Krebs viscometer measures the viscosity at a set speed shear rate which provides a consistent standard.

•Displays in KU, gms or Poise,show the room temperature

•Constant speed motor ensures accuracy and repeatability

•Quick release chuck allows rapid cleaning of paddle

•Multipoint calibration across torque range for optimum accuracy

•Software to connect with the PC to print the measurement data

•Self-protection system inside

•conform to ASTM D562 and D1131,ASTM 856.

VISCOSITY RANGE.

UNIT RANGE RESOLUTION
KU 40.2-141.0 0.1
G 32-1099 1.0
CP 20-5250 10
ACCURACY ± 2% of full scale(FSR)
REPEATABILITY ± 1%

TECHNICAL DETAILS.

MAINS 100-240V/50-60Hz
OPERATING TEMP +10ºC – +40ºC
DIMENSIONS 180×210×470 mm
WEIGHT 8KGS

FEATURES.

VISCOSITY READING KU , G , CP
SPEED 200 rpm
PADDLE standard KREBS-type paddle
INTERFACE RS232 Used together with a PC

Basic delivery includes:

– Viscometer

– Stand Krebs-type paddle

– Level adapter set

– Standard beaker

– User’ manual
