Introduction:
BEVS1707 PIG is using destructive method to measure coating thickness, containing single and multiple coats, applied on all of substrates, e.g. aluminium, iron, plastic, wood, concrete, glass etc.
Using Principle:

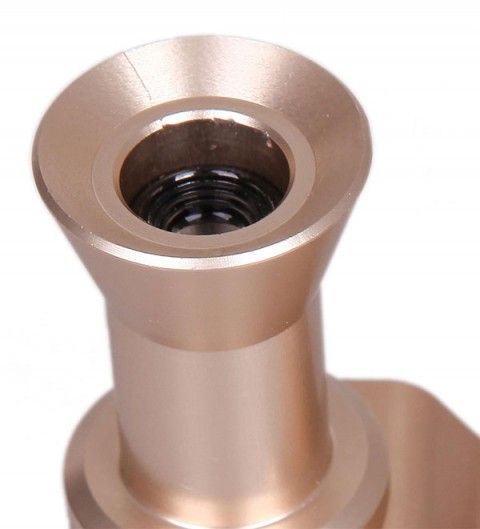

A cut is made on the test surface with a V-shaped tool.The coating thickness can be measured with the built-in microscope underthe LED light.
Standard:
ASTM D4138, DIN 50986, ISO 2808
Technical Specification:
| Cutter | Cut Angle | Range(μm) | D Factor(μm) |
| No.1 | 45° | 20-1800 | 20 |
| No.2 | 63.4° | 10-900 | 10 |
| No.3 | 84.3° | 2-180 | 2 |
Measurement Principle:
Operating Steps:
| Step | Illustration | Description |
| 1 |  |
Prepare the inspecting area |
| 2 |  |
Draw a line with the marker pen on the surface |
| 3 |  |
Cut the coating vertically and make sure it is lacerated |
| 4 |  |
Read the graduation-scale with the microscope to attain thickness |
Order Information:

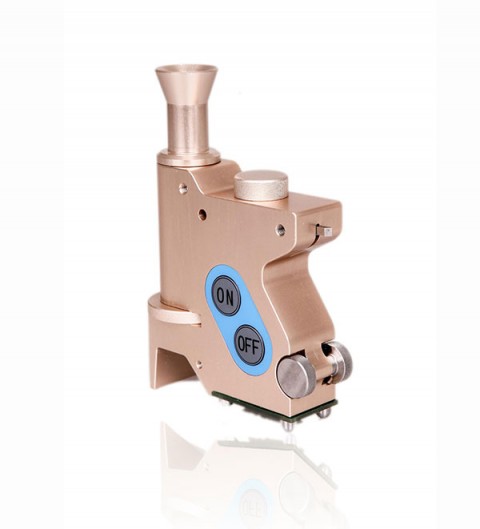

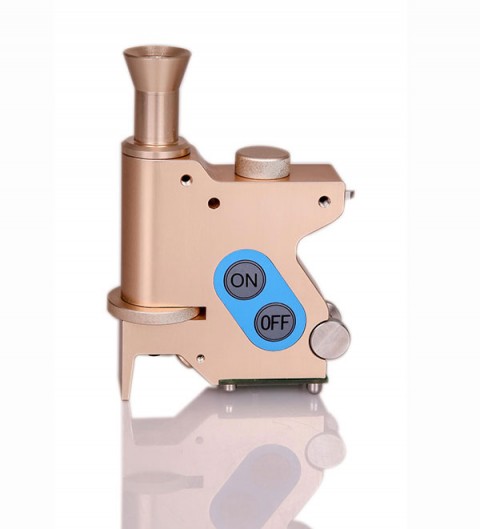

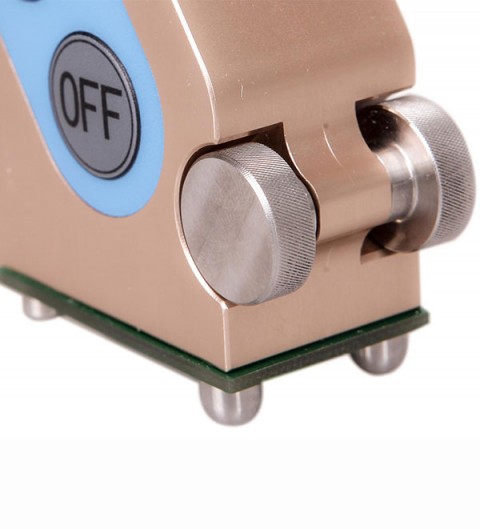

BEVS 1707 Paint Inspection Gauge
Including 1 pc of No.1 Cutter, battery, marker pen and carrying case
Order Information of Accessories:
BEVS 1707 PIG/1 Cutter No.1
BEVS 1707 PIG/2 Cutter No.2
BEVS 1707 PIG/3 Cutter No.3
