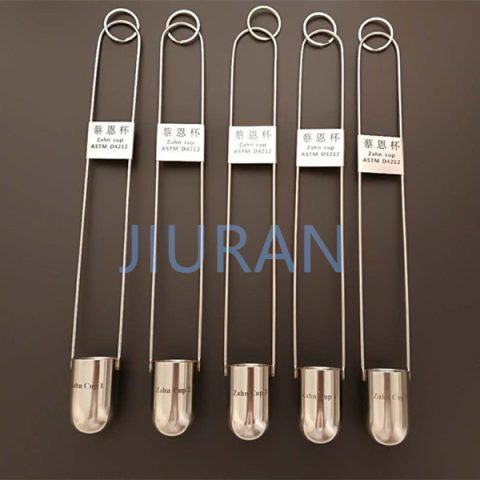

Zahn Cup is a small U-shaped cup suspended from a looped wire.
This method is ideal for measuring the consistency of paints, varnishes and similar products.
Simply dip the cup into the product to be measured, lift it out and measure how long it takes for the contents to empty through the orifice.
Each cup has a 12-inch loop handle to allow the cup to be dipped by hand into a liquid container.
At the center of this handle is a finger-ring for holding the cup in a vertical position during use.
Results should be reported in Zahn-Seconds at a specified temper- ature for a particular cup.
To convert Zahn-Seconds to centistokes, refer to ASTM D 4212.
Centistokes x Specific Gravity = Centipoise
Centistokes = K * (efflux time – C)
Ordering.
| Cat.No | Orifice (mm) | Range(cSt) | Range(sec) |
| 10241 | 2.0 | 5-20 | 20-80 |
| 10242 | 2.74 | 20-250 | 20-80 |
| 10243 | 3.76 | 100-800 | 20-80 |
| 10244 | 4.26 | 200-1200 | 20-80 |
| 10245 | 5.28 | 400-1800 | 20-80 |
| 10246 | 8.0 | — | — |
Technical Data.
| Cup | made of SS，44ml |
| Orifice | made of SS,Fixed |
| Handle | made of SS |
| Standards | ASTM D 1084，D 4212 |
| Weight | 75g |
| Width | 35mm |
| Height | 56mm |
| Total Length | 350mm |
Comes Complete With:
Zahn Viscosity Cup
Application Manual
Storage Box
