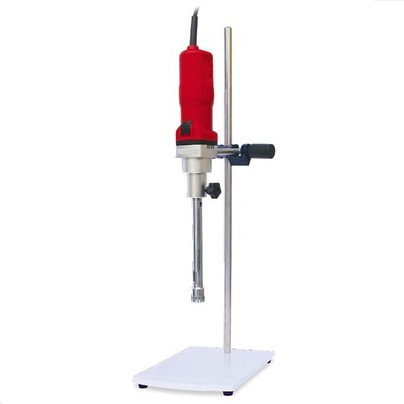

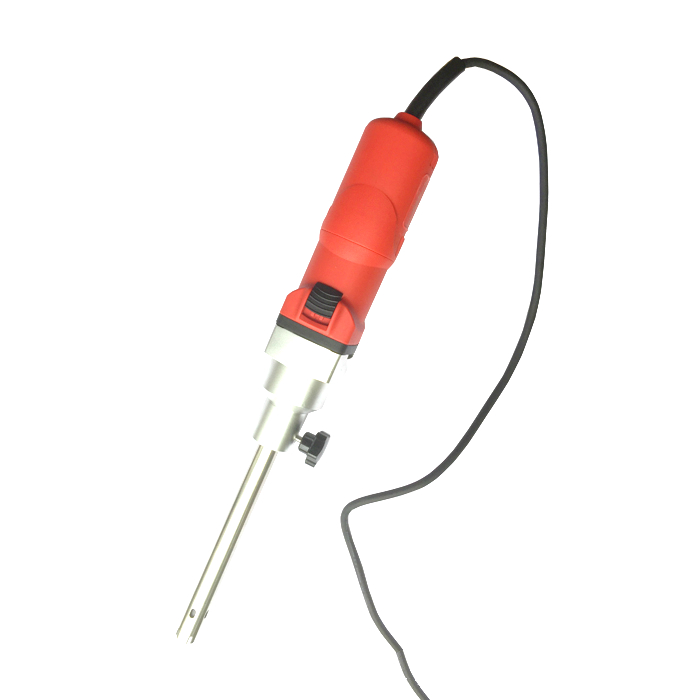

JR-25 high shear dispersing emulsifier can complete many different processes in laboratory, including dispersing, emulsifying, homogenizing and grinding, equipped with different dispersing tools for different applications. It is an integration of high power, versatility, reliability and durability to meet your strict requirements, and proved to be best seller.
Features & Performance
- High speed powerful motor for long running time
- Max. high rotation speed is 28,000rpm and velocity is up to 27m/s
- Smart modular design for flexible operation and high expansibility
- Many quick interchangeable dispersing tools for different materials
- Medium-contact materials are SS316L for sanitation purpose
- Materials of low to high viscosities can be handled very well
- High temperature and vacuum/pressurized conditions are workable
| Motor power | 500W |
| Power supply | 110V,220V,50/60Hz |
| Working capacity (H2O) | 0.2-7000ml |
| Max. handling viscosity | 8000CP |
| Rotation speed range (no-load) | 10000-28000rpm |
| Speed display | Scale display |
| Speed control | Stepless |
| Medium-contact materials | SS316L |
| Shaft sleeve material | PTFE |
| Standard dispersing tools | 25F |
| Ambient temperature | 5-40°C |
| Allowable humidity | 80% |
| Process type | Batch |
| Lifting stand | Yes |
| Overall dimension | 210×290×675 |
| Gross weight | ~7.1kg |
| Package | Carton box |
| Model | Capacity(Water) | Speed |
Material
|
Temperature | Pressure | Immersion length | Viscosity |
| JR-25-5G | 0.2-8ml | 3m/s | SUS304/316L | <120℃ | NO | 35mm | <80CP |
| JR-25-6G | 0.2-10ml | 5m/s | SUS304/316L | <120℃ | NO | 45mm | <100CP |
| JR-25-8G | 10-60ml | 8m/s | SUS304/316L | <120℃ | NO | 100mm | <100CP |
| JR-25-10G | 30-150ml | 10m/s | SUS304/316L | <120℃ | NO | 120mm | <200CP |
| JR-25-18G | 50-1500ml | 18m/s | SUS304/316L | <120℃ | NO | 180mm | <2000CP |
| JR-25-18F | 50-1500ml | 18m/s | SUS304/316L | <120℃ | NO | 180mm | <2000CP |
| JR-25-25SG | 100-5000ml | 27m/s | SUS304/316L/SIC | <180℃ | Yes | 200mm | <3500CP |
| JR-25-25SF | 100-5000ml | 27m/s | SUS304/316L/SIC | <180℃ | Yes | 200mm | <2500CP |
| JR-25-25G | 100-5000ml | 27m/s | SUS304/316L | <120℃ | NO | 200mm | <5000CP |
| JR-25-25F | 100-5000ml | 27m/s | SUS304/316L | <120℃ | NO | 200mm | <5000CP |
