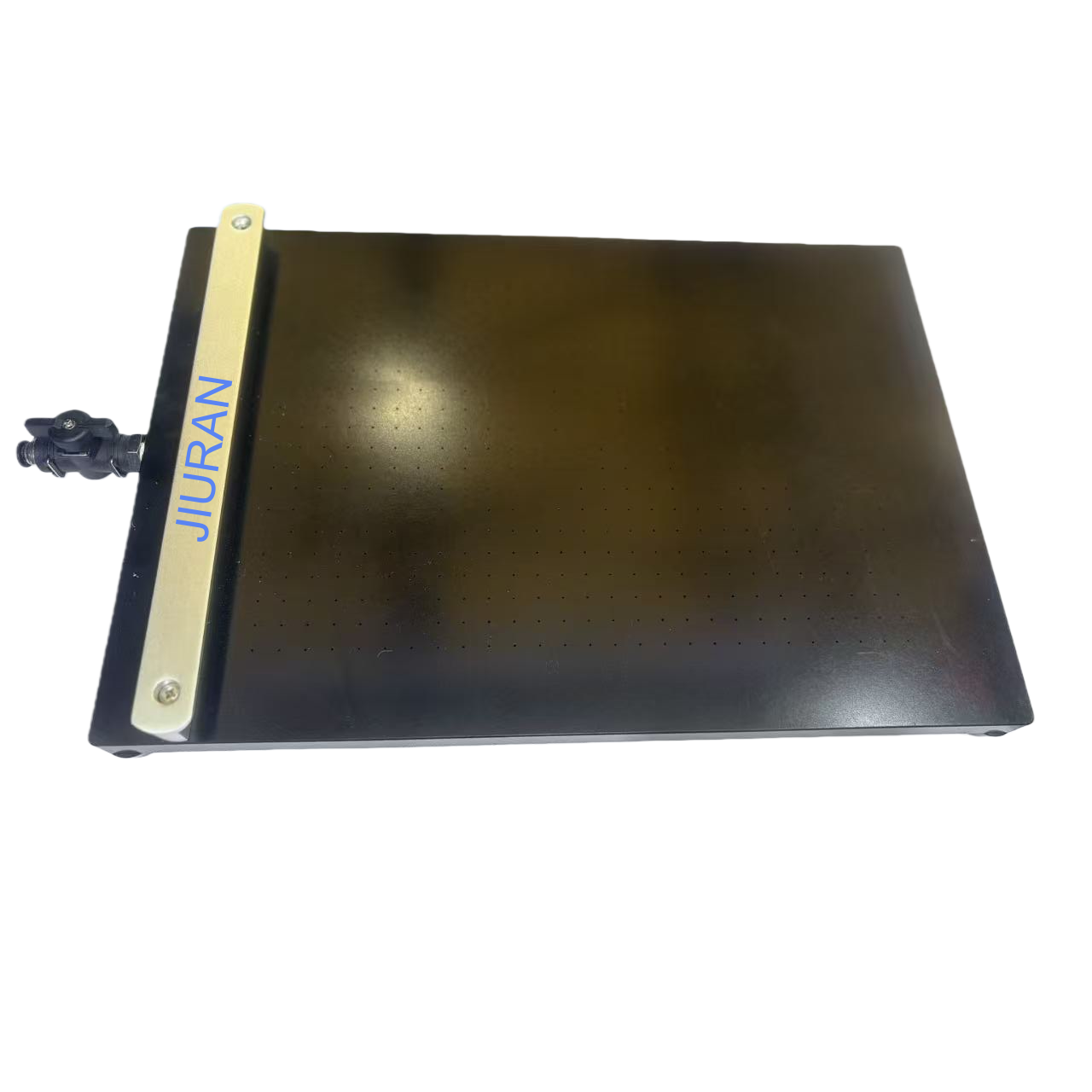

Vacuum Film Applicator Bed


Vacuum Film Applicator Bed


These drawdown vacuum plates are machined from hard aluminum solid stock and finished with grey hard coat anodized that gives a high durability with corrosion resistance that will dramatically increases wear and longevity of the vacuum plate. The top section of the plate has a series of holes. When attached by a hose connection to a vacuum pump or sink aspirator, the vacuum created holds down paper charts during application of wet coatings with any type of film applicator.

Each plate comes complete with a chrome plated brass ball valve with an easy on/off lever handle to enable or disable vacuum, and includes a high quality vacuum pump.



■ Ordering information:

JR 217/1— Vacuum Film Applicator Bed

Overall size:360×250×32.5mm

Area with hole size:290×190mm

JR 217/2— Vacuum Film Applicator Bed

Overall size:533×340×32.5mm

Area with hole size:460×270mm


        We also accept other special size vacuum bed order!
